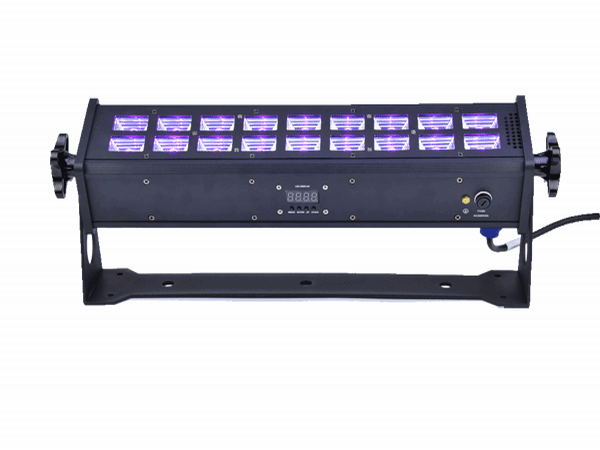

18 a UV lamp
Parameters of ultraviolet lamp
Rated voltage: ac90 ~ 240 v
Rated frequency: 50 ~ 60Hz + 10 %
Rated power: 65W
Power supply concatenation: no more than 700 VA
Number of lamp beads: 18 3W 395 nm UV lamp beads
Lamp bead wavelength: 395 nm
Service life: about 50000 hours
Control Protocol: International Standard DMX - 512 Signal
Channel mode: two control channel modes, 1ch and 3chs modes are optional
Control modes: DMX - 512 signal control mode, self-propelled control mode and intelligent master-slave control mode
Dimmer 0 is normal fast linear dimming and Dimmer 1 - 9 is soft nonlinear dimming
Dimming effect: 0 - 100 linear dimming
Stroboscopic speed: 1 ~ 20Hz
Luminous angle: 90 x 120 degrees
Product size: 457 x 98 x 155 mm
Net weight of product: 2.42 kg
Lamp connection: DMX - 512 signal in / out, power in / out ( do not connect more than 5 sets in series )
