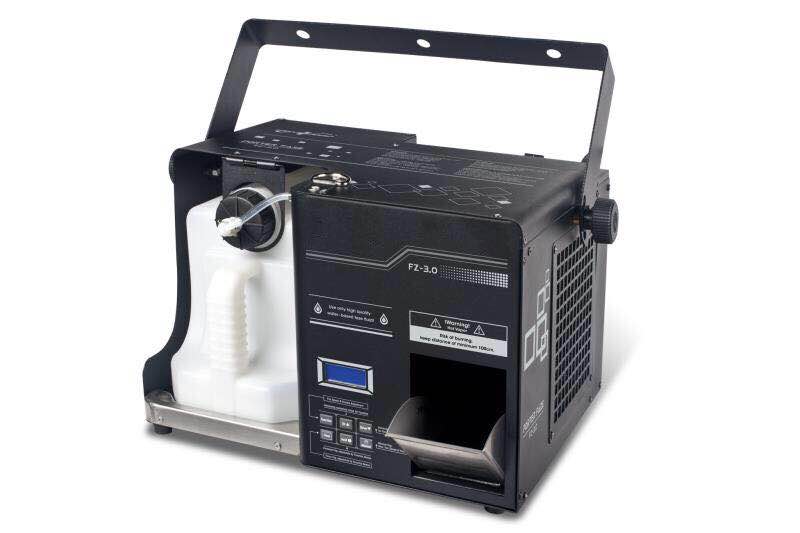

Smoke machine FZ-3.0
Product specification
| Appearance configuration | Black iron shell |
| Heating device power | 1400 W |
| Power consumption ( complete machine ) | 1500 W |
| Fuses ( 230 V, 240 V ) | No Fuse Switch ( NFB 10A ) |
| Heating time ( seconds or minutes ) | 45 seconds |
| Smoke emission ( cubic feet per minute ) | 15000 |
| Oil drum capacity ( liters ) | 5.6 |
| DMX channel | 1CH, 2CH & 4CH |
| Display Type | Blue Light Liquid Crystal Display |
| Internal function | Continuous smoke spraying, timed smoke spraying and manual smoke spraying |
| Smoke oil consumption ( ml / min ) | Max smoke quantity 16 ml / min |
| Signal line connector style | 3P or 5P XLR |
| Signal line connector style | Wire type |
| Whether there is oil level warning | LED display text notification |
| Master - slave control | |
| Volume ( length x width x height with hanging handle ) | 394 x 434 x 253 mm |
| Weight ( kg ) | 10.6 |
| Applicable voltage | 230 V, 240 V / 50Hz |
| Applicable Controller ( Standard ) | Direct Panel Control |
| Applicable controller ( optional ) |
* note: the voltage ＆#118alue is set before delivery, and the user cannot change it by himself.
