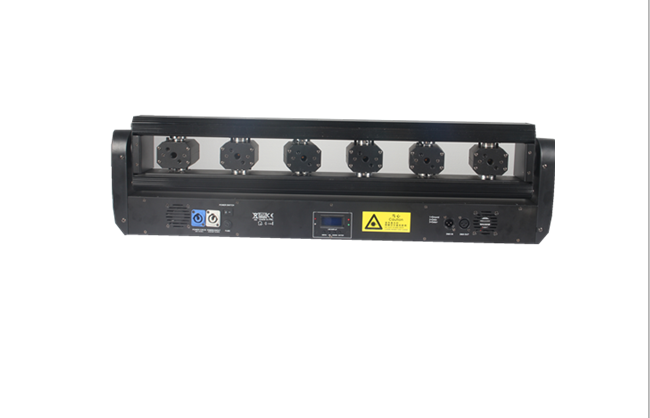

Model |
Description |
激Laser configuration |
|
LR-6S |
3W Red, six-point laser light |
R638nm-500mW*6pcs |
|
LG-6S |
600MW green 6-head laser light |
G520nm-100mW*6pcs |
|
LB-6S |
6W blue, 6-head laser light |
B445nm-1000mW*6pcs |
Technical parameters:
Rated voltage: AC110V-AC230V ±10％（150W）
Rated frequency: 50Hz-60Hz
Laser source: semiconductor laser
Modulation mode: analog modulation 0-100 linear dimming
Laser color: Red 638nm, Green 520nm, Blue 445nm.
DMX channel: 19 channel optional (function of each header channel, color and effect can be controlled separately)
Control signal: international standard DMX-512 signal
Control mode: DMX-512 signal control, sound control, self - walk control, master slave synchronous control.
Cooling system: fan forced cooling
Working environment: indoor
Length: 840*145*210mm Weight: 10.5 kg

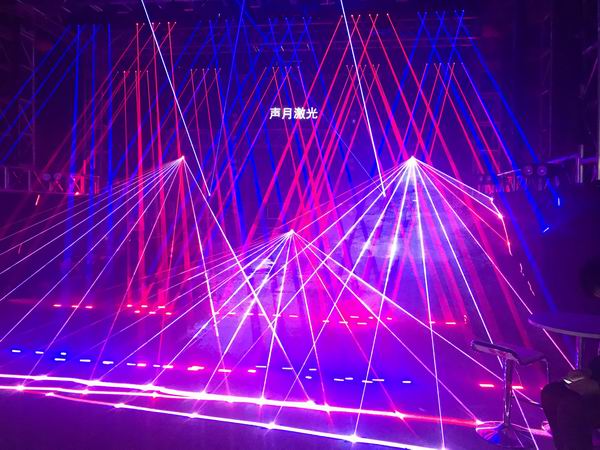

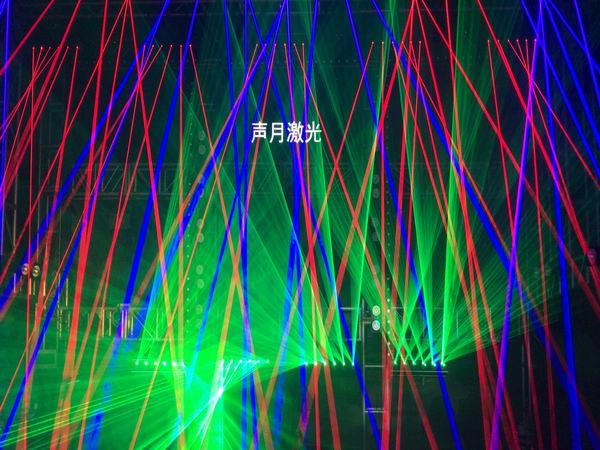

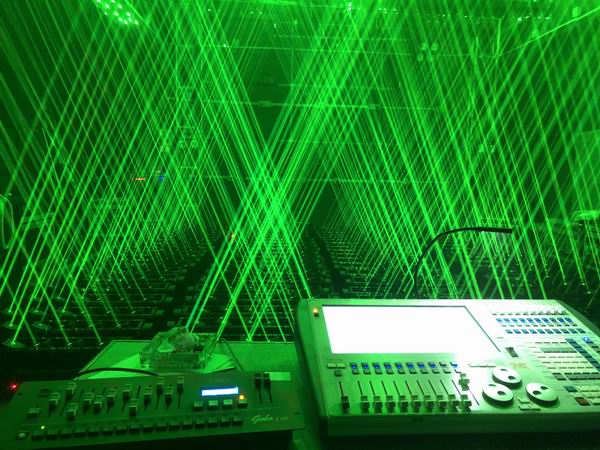

This laser lamp is widely used in bars, large concert and other occasions, DMX19 channel control, X axis and
Y axis motor can be independently controlled, can separately control the switching light of each beam, DMX built-in
horse racing program.
